Ultrasonic

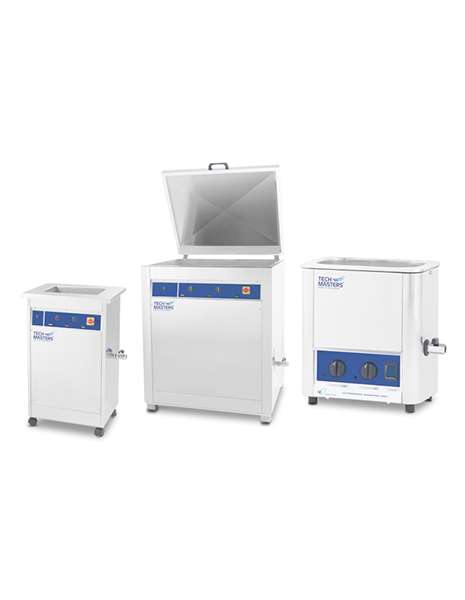

ULTRASONIC washing machines are characterized by "HD" acronym and establish the new Tech-Masters experience in the field of ultrasonic cleaning machines. All models underlie the highest quality standards.
ULTRASONIC machines are compact, reliable and essential for a deep and fast cleaning of every kind of object, even with irregular surfaces or complex shape.
All models are equiped with an automatic sweep function which allows a more homogeneous distribution of the cavitation waves in the machine and consequent improvement of the washing effectiveness.
The use of a more powerful microprocessor allows the development of a new software able to find in a faster way the optimal working frequency, based on the water level, the temperature of the washing liquid and the volume of the objects.
Due to the used materials both the tanks and the water discharge valves are more resistant to corrosion.
ULTRASONIC is also available with "silent system" which offers reduced acoustic emission. The special soundproofed structure and special support system for hooks or baskets allow the correct operation of the ultrasound washing machine also with the closed lid, reducing a lot the acoustic emission and energy consumption for water heating.

  • Highest quality standards
  • Compact and reliable
  • Deep and fast cleaning of contaminated pieces
  • Automatic sweep function
  • Automatic adaption of working frequence
  • Special models with "silent system"
Article nr Name Content
T502053 Ultrasonic 430 HD 5L 1pc.
T502055 Ultrasonic 950 HD 10,5L 1pc.
T502061 Ultrasonic HD 25L 1pc.
T502062 Ultrasonic HD 50L 1pc.
T502074 Ultrasonic HD Silent 100L 1pc.
T502076 Ultrasonic HD Silent 200L 1pc.
T502077 Ultrasonic HD Silent 90L 1pc.

» To the shop
  • Technical data
  • Downloads

Ultrasonic 430HD
Tank capacity: 5l
Tank dimensions: 240 x 137 x 170 mm
External dimensions: 315 x 175 x 330 mm
Heating power: 250 W
Ultrasonic peak max.: 300 W
Voltage: 230 V
Ultrasound frequency: 26 Khz

Ultrasonic 950HD
Tank capacity: 10,5
Tank dimensions: 300 x 240 x 170 mm
External dimensions: 375 x 280 x 335 mm
Heating power: 500 W
Ultrasonic peak max.: 550 W
Voltage: 230 V
Ultrasound frequency: 26 Khz

Ultrasonic HD
Tank capacity: 25l
Tank dimensions: 350 x 250 x 300 mm
External dimensions: 550 x 450 x 870 mm
Heating power: 1500 W
Ultrasonic peak max.: 950 W
Voltage: 230 V
Ultrasound frequency: 26 Khz

Ultrasonic HD
Tank capacity: 50l
Tank dimensions: 500 x 250 x 400 mm
External dimensions: 700 x 450 x 920 mm
Heating power: 3000 W
Ultrasonic peak max.: 1200 W
Voltage: 230 V
Ultrasound frequency: 26 Khz

Ultrasonic HD Silent
Tank capacity: 92l
Tank dimensions: 540 x 400 x 430 mm
External dimensions: 690 x 550 x 900 mm
Heating power: 4500 W
Ultrasonic peak max.: 1800 W
Voltage: 400 V three phase + neutral
Ultrasound frequency: 26 Khz
Maximum basket load: 40Kg

Ultrasonic HD Silent
Tank capacity: 100l
Tank dimensions: 670 x 300 x 500 mm
External dimensions: 810 x 490 x 950 mm
Heating power: 4500 W
Ultrasonic peak max.: 1950 W
Voltage: 400 V three phase + neutral
Ultrasound frequency: 26 Khz

Ultrasonic HD Silent
Tank capacity: 200l
Tank dimensions: 700 x 500 x 550 mm
External dimensions: 840 x 750 x 1000 mm
Heating power: 6000 W
Ultrasonic peak max.: 2900 W
Voltage: 400 V three phase + neutral
Ultrasound frequency: 26 Khz

ULTRASONIC should be used in combination with following cleaners:
- CA Buster
- Aqua Clean Blue
- Bio Clean
- Ultra Cleaner
