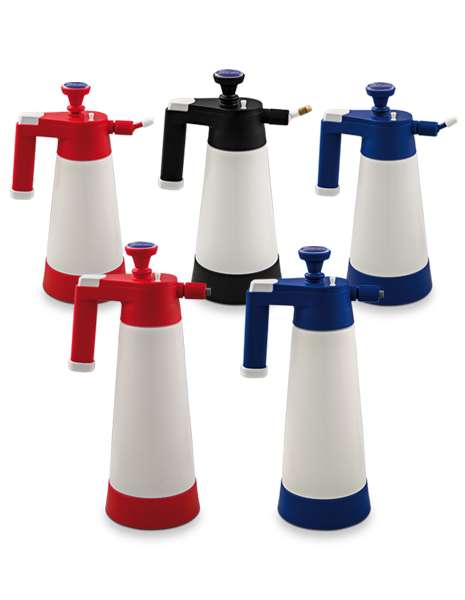

Spray Master

SPRAY MASTER is a pressure sprayer with increased chemical resistance against acids, alkalines and solvents.
It is intended to be used in car washes, builing industry, welding, filling stations, medical facilities as well as at home.
SPRAY MASTER is easy to use and very efficient.

  • Resistant to acidic, alkaline and solvents
  • Easy to use
  • Efficient
  • High qualitiy materials
Article nr Name Content
T875003 Spray Master Alkaline 1,5l 1pc.
T875004 Spray Master Acid 1,5l 1pc.
T875005 Spray Master Solvent 1,5l 1pc.
T875006 Spray Master Alkaline Foamer 2l 1pc.
T875007 Spray Master Acid Foamer 2l 1pc.
Y875901 Service Kit Spray Master Alkaline/Akaline Foamer 1pc.
Y875904 Service Kit Spray Master Acid/Acid Foamer 1pc.
Y875905 Service Kit Spray Master Solvent 1pc.

» To the shop
  • Technical data
  • Application and usage
  • Downloads

SPRAY MASTER ACID
Dimensions: 140x220x330 mm
Rated capacity: 1,5l
Maximum capacity: 1,87l
Sprayer net weight: 0,515 kg
Operating pressure: 2,6 bar

SPRAY MASTER ALKALINE
Dimensions: 140x220x330 mm
Rated capacity: 1,5l
Maximum capacity: 1,87l
Sprayer net weight: 0,550 kg
Operating pressure: 2,6 bar

SPRAY MASTER FOAMER
Dimensions: 140x220x390 mm
Rated capacity: 2,0l
Maximum capacity: 2,3l
Sprayer net weight: 0,625 kg
Operating pressure: 2,6 bar

SPRAY MASTER SOLVENT
Dimensions: 140x220x330 mm
Rated capacity: 1,5l
Maximum capacity: 1,87l
Sprayer net weight: 0,550 kg
Operating pressure: 2,6 bar

  • USE:
    - Remove the head and pour in the spray liquid prepared in accordance to the manufacturer's recommendations.
    - Screw the head back in.
    - Move the sprayer to the work site.
    - With the piston rod pump the sprayer (around 20 full motions) until the safety valve lever.
    - With the spraying nut you can regulate the output stream.
    - By tightening or loosening the nut you can achieve various spraying degrees - from mist to continuous stream.
  • STORAGE/MAINTENANCE:
    - Each time after work wash the sprayer thoroughly with clean water.
    - Depressurise the tank pulling the safety valve pin.
    - Remove the head and pour clean water into the tank (approx. 1/4 of the tank capacity.
    - Screw in the head until sealed and pump the tank.
    - Conductsome spraying in order to rinse the device's spraying system.
    - After you finish, depressurise the tank and remove the head and remaining water in the tank.
    - SPRAY MASTER should be stored WITHOUT PRESSURE in temperatures between +5°C and +35°C, in a shaded place, away from heaters and out of reach of children.
